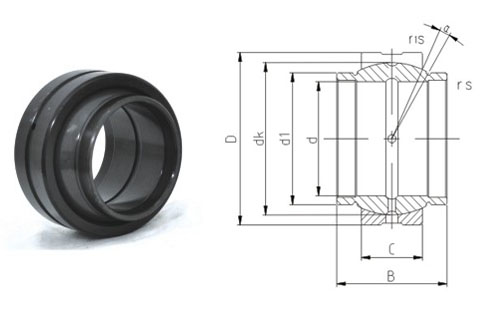

Inner ring with cylindrical extensions in both sides. Outer ring with single split in axial direction. Both outer and inner rings are made of carbon chromium steel, hardened and phosphorization treatment, sliding surface treated with MoS2. Bearing type with "2RS" have lip seals in both sides.
Sliding contact surfaces: Steel / Steel
Bearing
CodeDiemensions(mm) Load
ratings KNd D B C dk rs rls ≈a° Weight min min Dynamic Static ≈Kg GEEW12ES 12 22 12 7 18 0.3 0.3 4 10 53 0.017 GEEW15ES 15 26 15 9 22 0.3 0.3 5 16 84 0.028 GEEW16ES 16 28 16 9 23 0.3 0.3 4 17 85 0.034 GEEW17ES 17 30 17 10 25 0.3 0.3 7 21 106 0.043 GEEW20ES 20 35 20 12 29 0.3 0.3 4 30 146 0.069 GEEW25ES 25 42 25 16 35.5 0.6 0.6 4 48 240 0.124 GEEW30ES 30 47 30 18 40.7 0.6 0.6 4 62 310 0.159 GEEW32ES 32 52 32 18 43 0.6 1 4 65 328 0.207 GEEW35ES 35 55 35 20 47 0.6 1 4 79 399 0.248 GEEW40ES 40 62 40 22 53 0.6 1 4 99 495 0.349 GEEW45ES 45 68 45 25 60 0.6 1 4 127 637 0.468 GEEW50ES 50 75 50 28 66 0.6 1 4 156 780 0.62 GEEW60ES 60 90 60 36 80 1 1 4 245 1220 1.11 GEEW63ES 63 95 63 36 83 1 1 4 253 1260 1.27 GEEW70ES 70 105 70 40 92 1 1 4 313 1560 1.69 GEEW80ES 80 120 80 45 105 1 1 4 400 2000 2.55 GEEW90ES 90 130 90 50 115 1 1 4 488 2440 3.04 GEEW100ES 100 150 100 55 130 1 1 4 607 3030 4.87 GEEW110ES 110 160 110 55 140 1 1 4 654 3270 5.53 GEEW125ES 125 180 125 70 160 1 1 4 950 4750 8.19 GEEW160ES 160 230 160 80 200 1 1 4 1360 6800 15.8 GEEW200ES 200 290 200 100 250 1.1 1.1 4 2120 10600 31.7 Remark: 1.The listed load rating,
unit weight is for reference.2.GEEW…ES is equivalent to GE…LO INA and GEG…ES SKF -
Inner ring with cylindrical extensions in both sides. Outer ring with single split in axial direction. Both outer and inner rings are made of carbon chromium steel
GEEW..ES
